Category:
Plastic Injection Moulding
Client:
Group project (Plastics)
Duration:
2 week
Crafted from high-grade ABS plastic, The injection-molding process ensures a high-gloss finish details, providing a sleek professional look.
(BRIEF)
To design plastic injection molding toy truck.

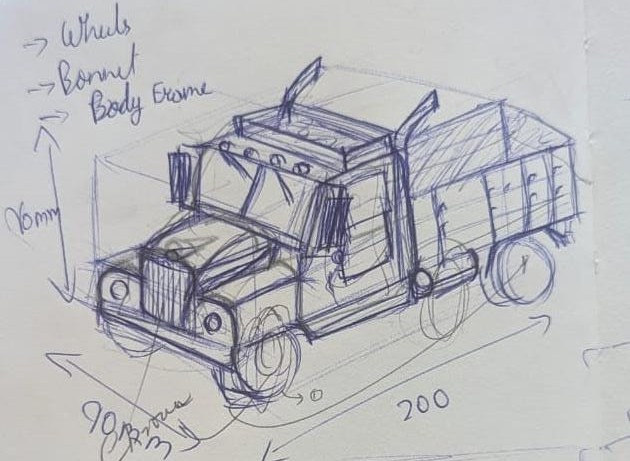

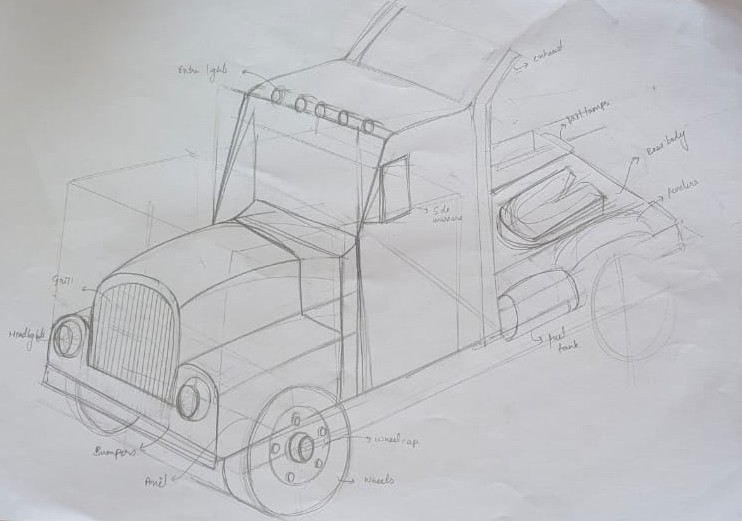

The ideation is inspired from the old nose trucks.
(USER & TOPOLOGY)
This is designed for children of age 3 and above because ABS is safer for them.
(MATERIALS)
ABS Plastic body (Blue) gloss
ABS Plastic base (Black) matte
ABS Grill (Chrome plated)
SAN (Styrene Acrylonitrile) Wind screen
ABS Plastic wheels (Chrome plated)
Metal rod (QTY - 2)

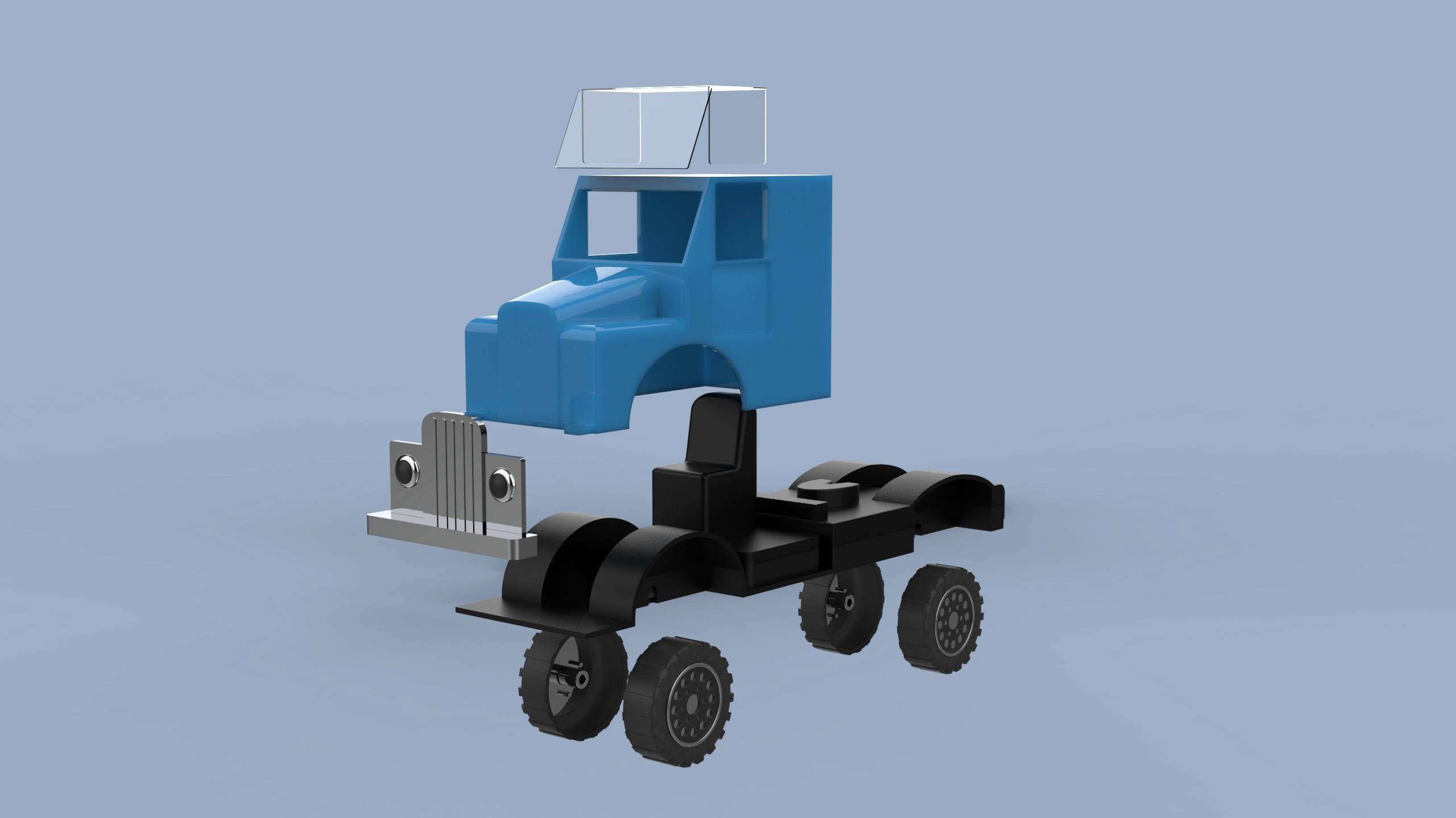

(PROCESS)
Grill is ultrasonic welded to the Body.
Wind screen ultrasonic welding to the Body.
Body fitted to the Base with boss and screw.
The wheels is fitted to the metal rod
